Production

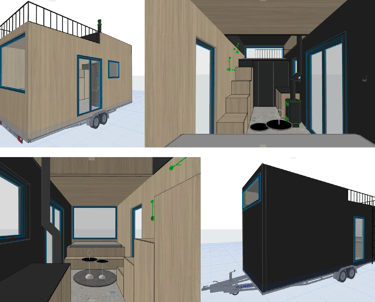

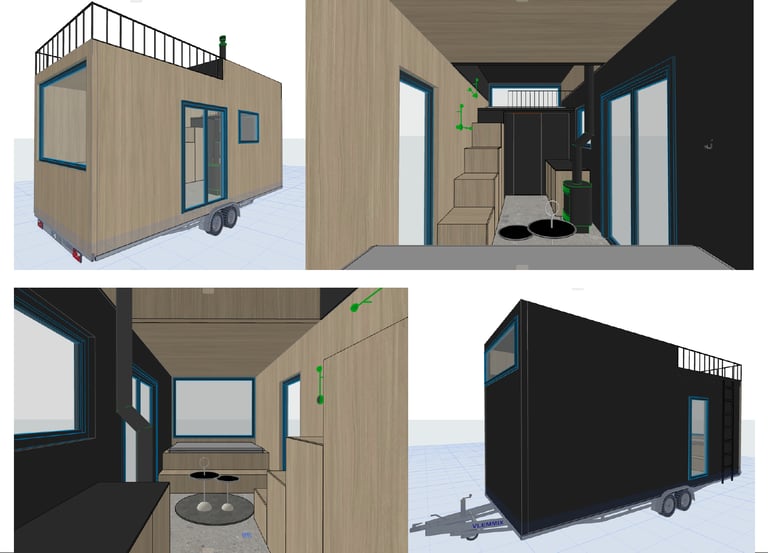

Concept
Our in-house deisgners have created a unique Tiny House concept with a sleeping area for 4 people, lounge area and with a terrace on a roof.
We have registered this design and started a standartized production in 2024.

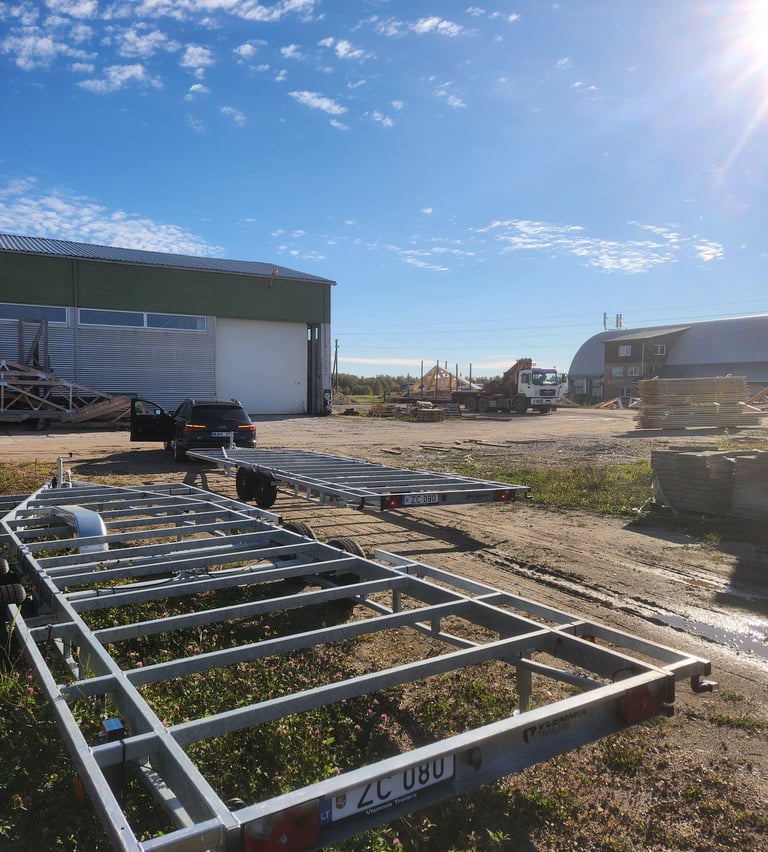

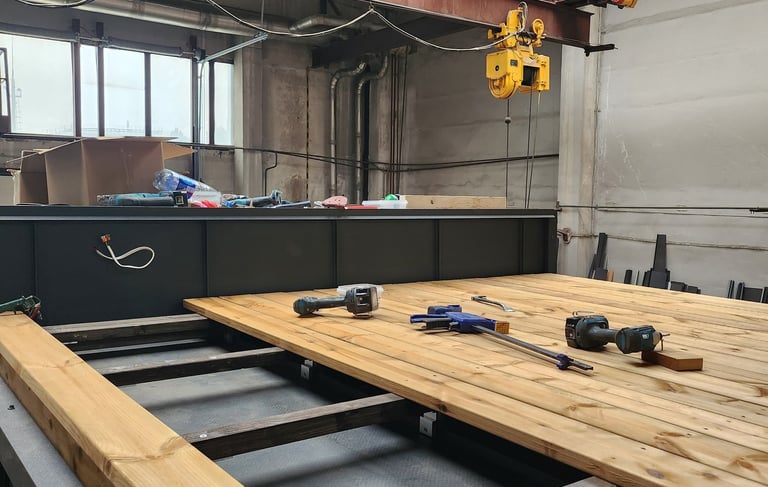

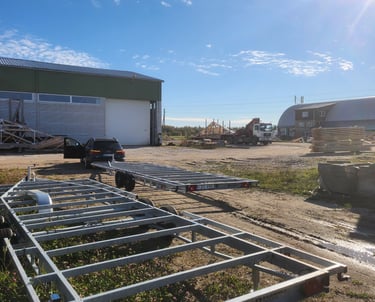

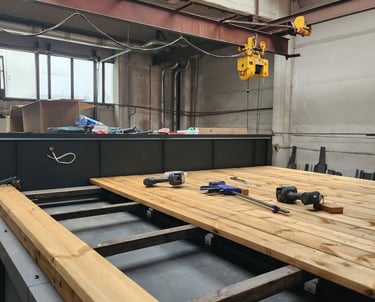

Trailer
Vlemmix Trailers is the market leader for tiny house trailers and we are one of a dozen distributors of Vlemmix Trailers in Europe.
The tiny house trailer platform version has a height of 52 and 62 cm. The total width of the platform is 244 cm and the wheel arches are 255 cm. The construction platform is completely flat.
Dimensions: 7.2 x 2.44 m
2 x Axle 1800 kg

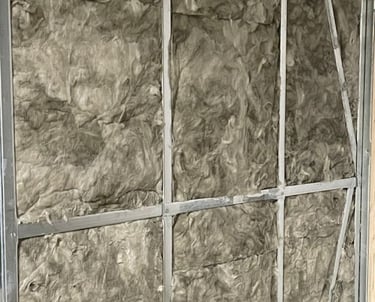

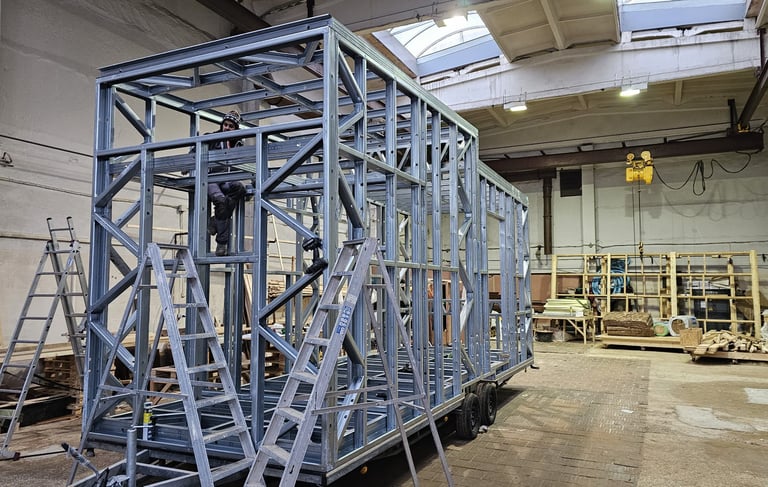

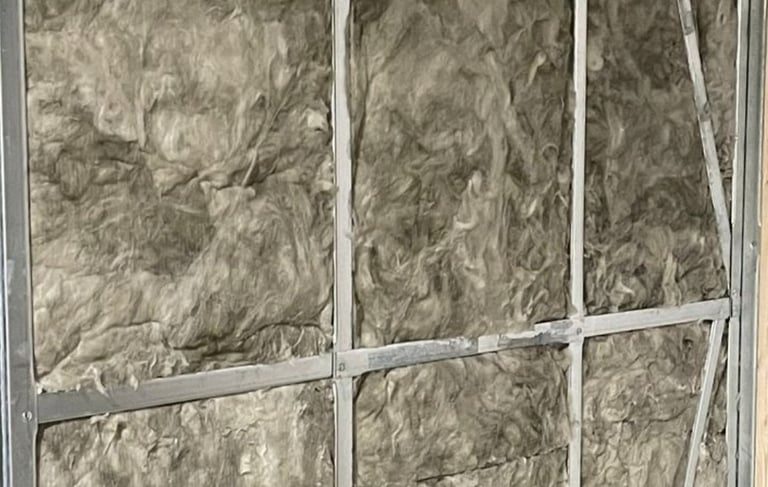

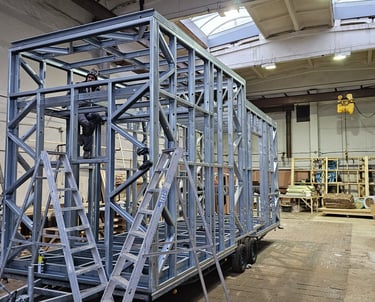

Light gauge steel frame
Light gauge steel framing (LGSF) is a type of construction technology that uses thin sheets of cold-formed steel as its construction material. Typically, these sheets are galvanised to resist corrosion. They remain lightweight, especially compared to wood.

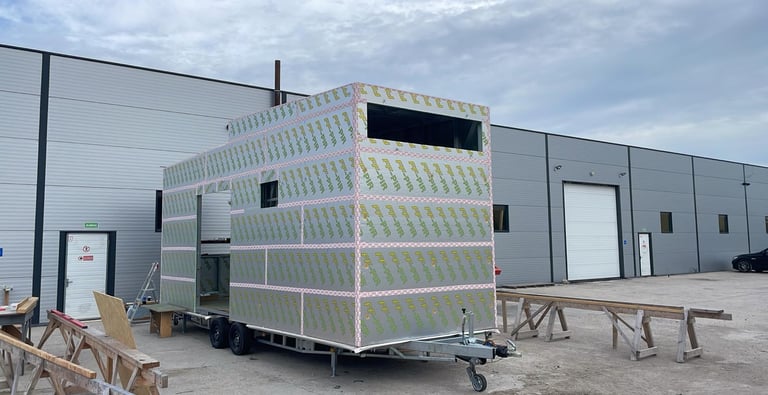

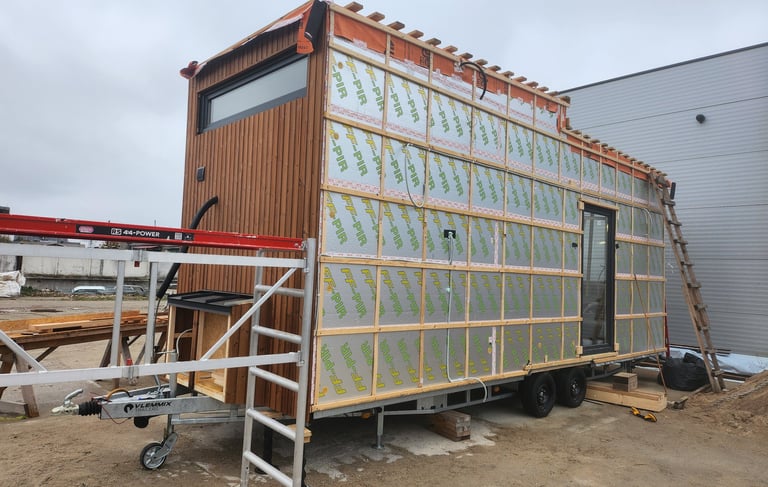

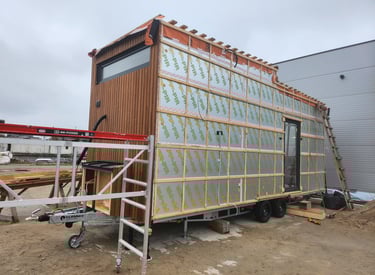

PIR insulation panels
very low coefficient of thermal conductivity (λ = 0.022 W/mK; in some types of panels, this coefficient may be lower; the lower the value of λ, the higher the thermal insulation of the material);
high temperature resistance,
installation all year round,
resistance to rodents, fungi and moulds,
pressure resistance,
water resistance.

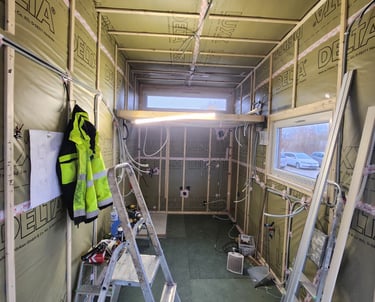

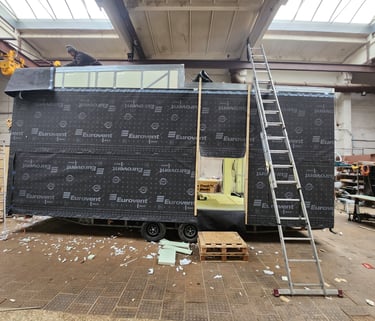

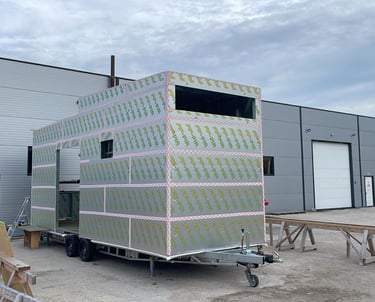

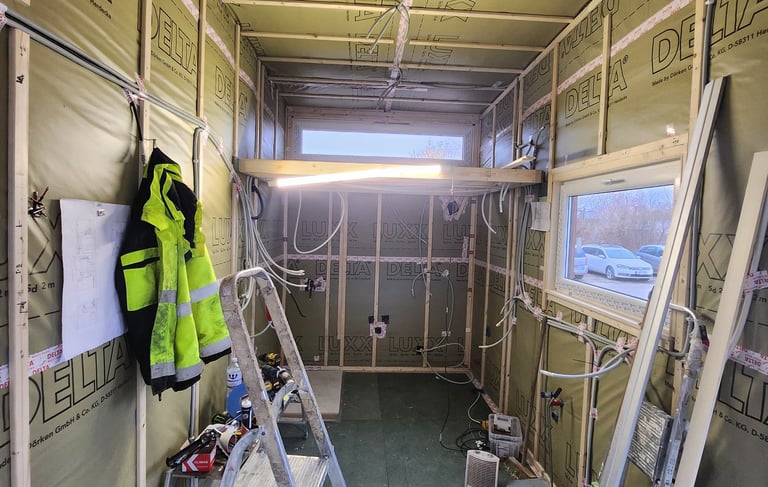

Vapour insulation film
It provides improved energy savings, a better indoor microclimate, effective protection against vapour and moisture

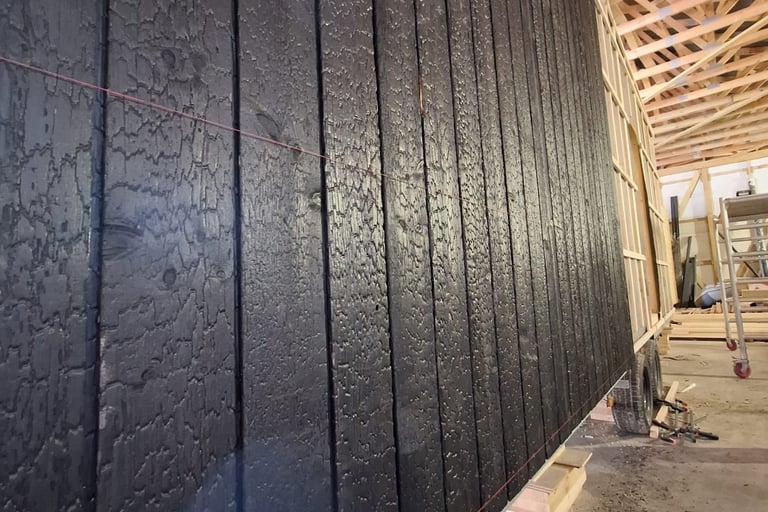

Exterior

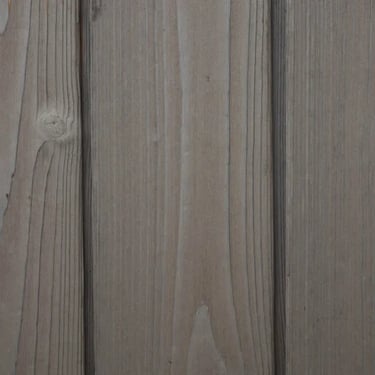

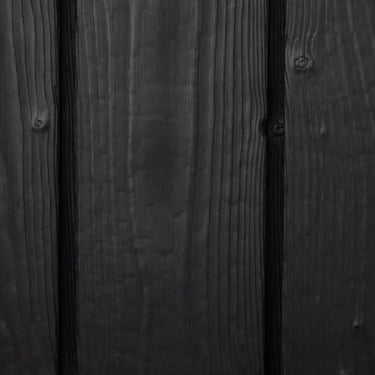

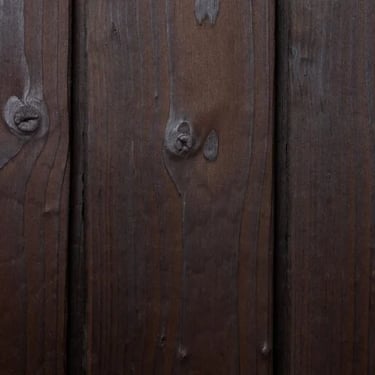

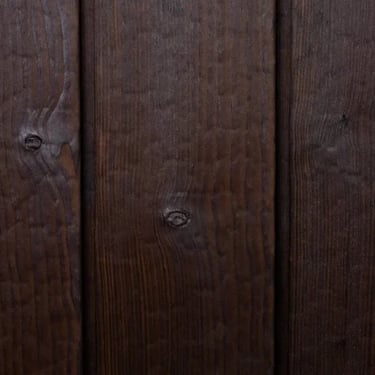

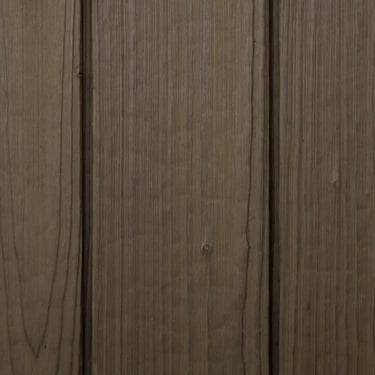

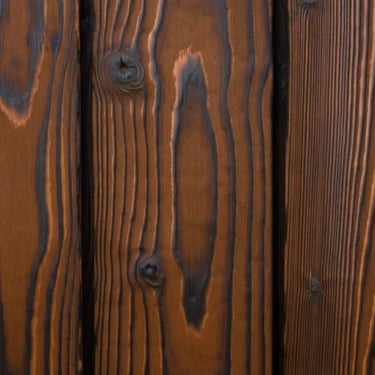

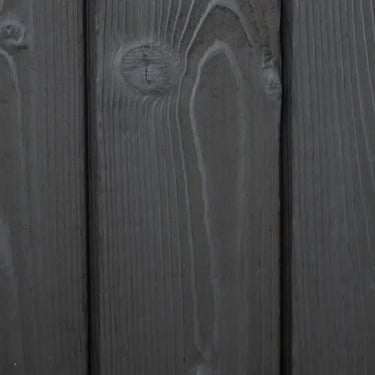

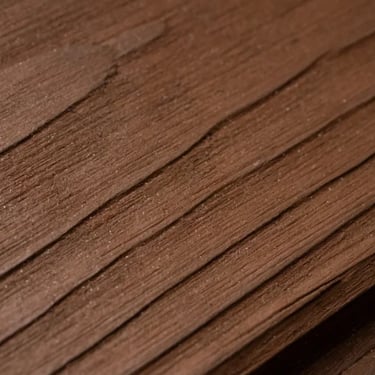

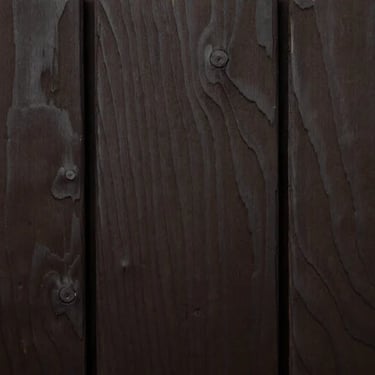

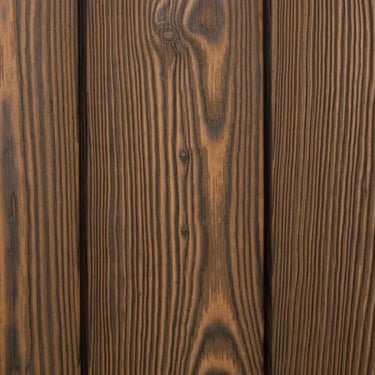

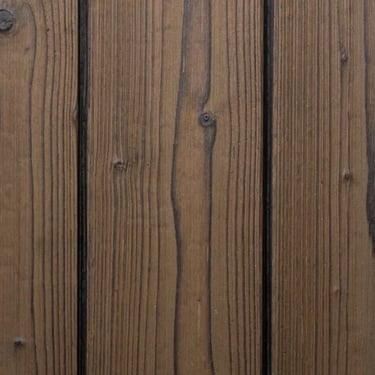

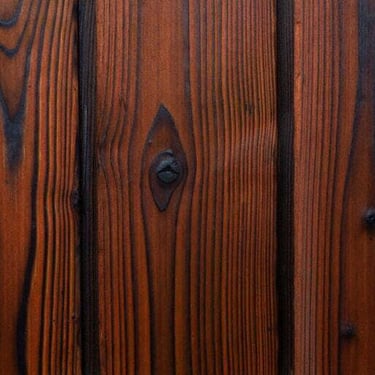

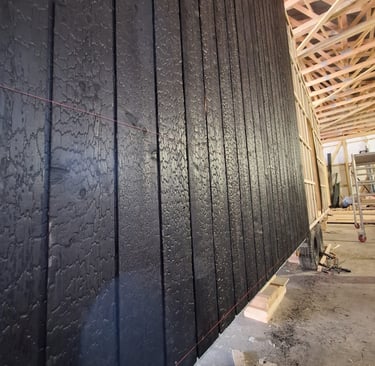

Thermo-wood or thin steel layers.
Electric wiring
Polyvinyl chloride (PVC) wire is a single or multi core PVC insulated wire. In most instances, the wire has no jacket except when it has more than one core. PVC is a thermoplastic material that softens with heat, a factor that eases wire production and allows manufacturers to extrude the PVC cable insulation.

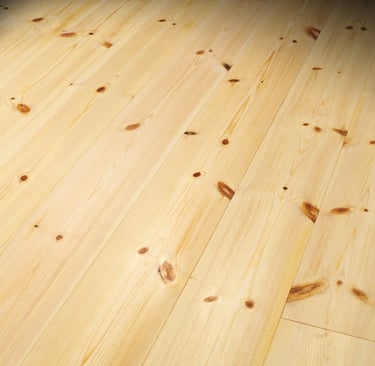

Flooring
Vinyl flooring, laminate

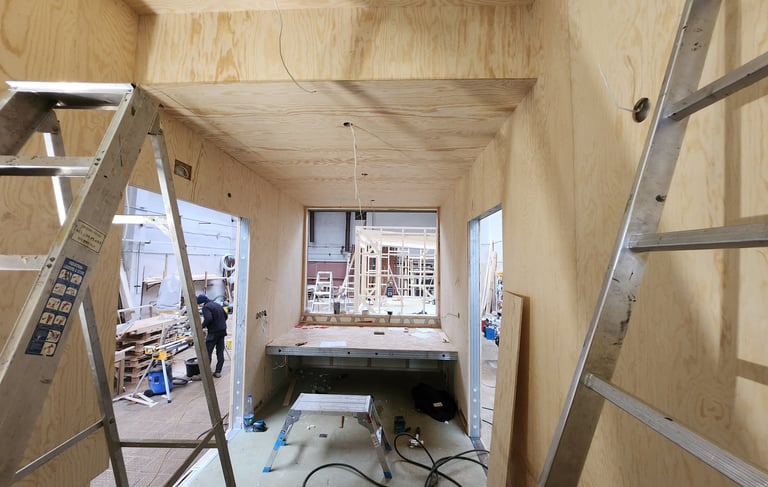

Interior wall paneling
Wood paneling, plywood

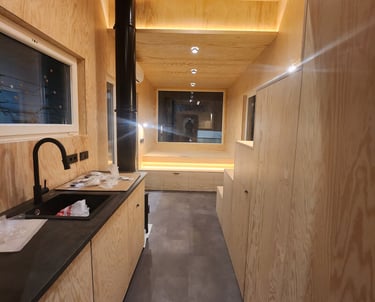

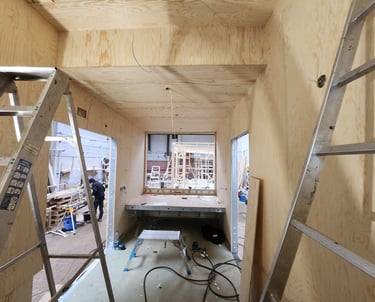

Interior
Wood paneling, plywood

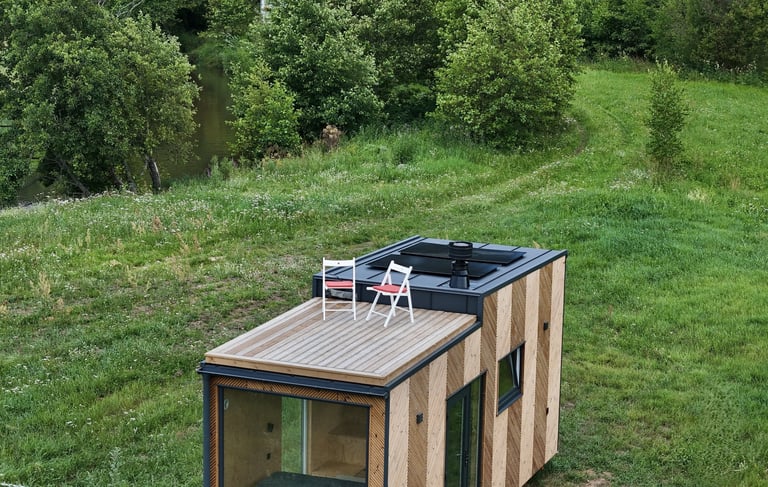

Terrace
3.5 x 2.5 m

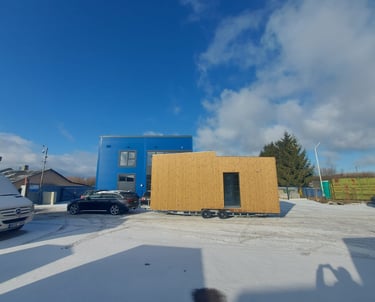

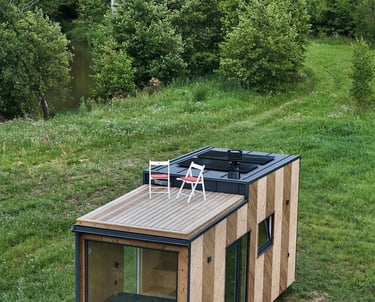

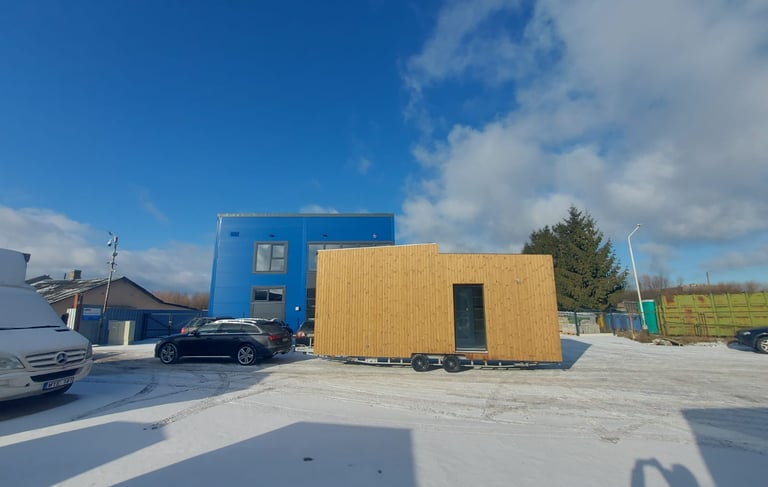

Finished product in the Expo
